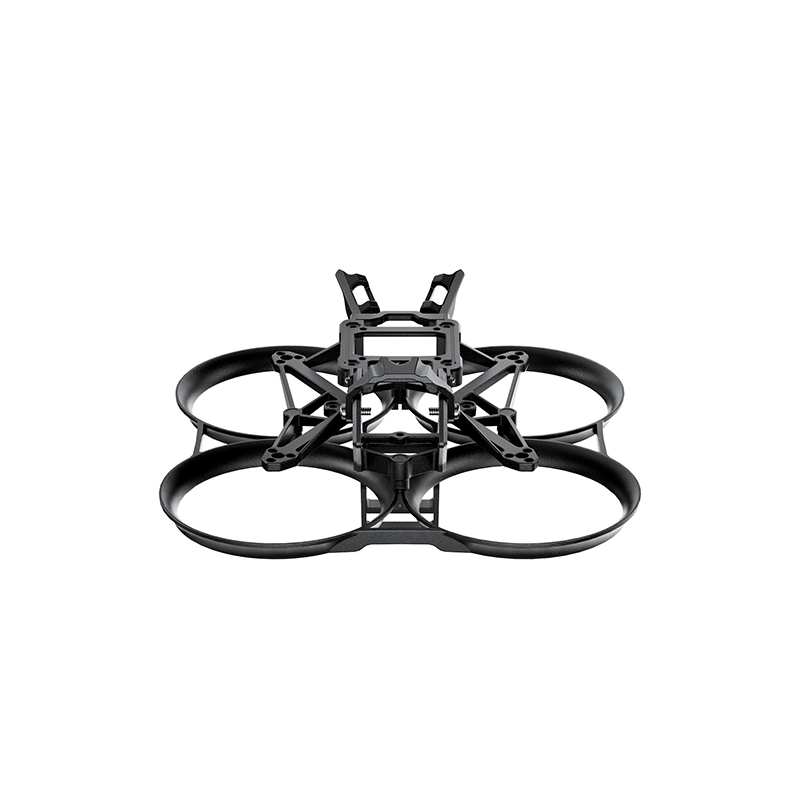

GEP-DS20 Frame

GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.

Feature

• New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.
• Modular structure, easy to assemble.
• Five colors available: white, pink, gray, black, and blue.
• Adapted to O3 AIR Unit, Link, and analog image transmission.
• Compatible with 1003 and 1102 motors.
• The antenna fixed shield is carefully designed to be both practical and beautiful.
• Frame-type battery compartment makes it easier to disassemble and install batteries.

• Specifications

• Model:GEP-DS20 Frame
• Dimension:126mm*126mm*57mm
• Wheelbase:90mm
• FC Mount:25.5mm*25.5mm
• VTX Mount:20mm*20mm/25.5mm*25.5mm
• Motor Mount:3-M1.4-φ6.6mm
• Camera size:19mm/20mm
• Battery Slot Width:17.3mm*13.5mm
• Colors:white/pink/gray/black/blue
• Propellers:2 inch
• Weight:26g
•

Includes

1 x Integrated Protective Frame

1 x Main Frame

1 x VTX Mounting Plate

1 x Camera Protective Cap

1 x Screw Pack

2 x VTX Antenna

1 x 1.5mm L-type Screwdriver

1 x Torx Screwdriver
