GEP-DS22 Frame

Overview

The GEP-DS22 is a compact 2.2-inch FPV drone frame built for smooth cinematic flights both indoors and outdoors.

Designed with a balance of protection and performance in mind, this frame delivers strong durability, responsive handling, and reliable flight characteristics in a lightweight design.

Its reinforced composite construction and carefully engineered structure help minimize impact damage while improving overall rigidity and stability during flight.

The modular color options also let pilots customize the look of their build, creating a drone that stands out both in the air and on the workbench.

Main Features

• Reinforced nylon composite construction improves strength and increases resistance to crashes and impacts.
• An advanced five-point floating damping design helps reduce vibrations for smoother footage and improved flight stability.
• Interchangeable colored parts allow for personalized custom builds.
• Integrated mounting points for a Nano GPS module make future GPS upgrades easy.
• A specially designed canopy provides added protection for the DJI O4 Pro camera system.
• The removable top plate and prop guard system simplify repairs and routine maintenance.

Technical Specifications

• Product Name: GEP-DS22 Frame Kit
• Prop Guard Finish: Black
• Camera Protection Cover Colors: Orange / Gray
• Canopy Colors: Orange / Gray
• Frame Class: 2.2-inch
• Wheelbase: 100 mm
• Main Carbon Plate Thickness: 2.0 mm
• Flight Controller Mounting Pattern: 25.5 × 25.5 mm
• VTX Mounting Pattern: 25.5 × 25.5 mm
• Motor Mount Pattern: 9 × 9 mm
• Camera Mount Width: 20 mm
• Battery Connector Type: XT30U-M
• Recommended Propeller Size: 2.2-inch
• Approximate Weight: 50.4 ± 5 g

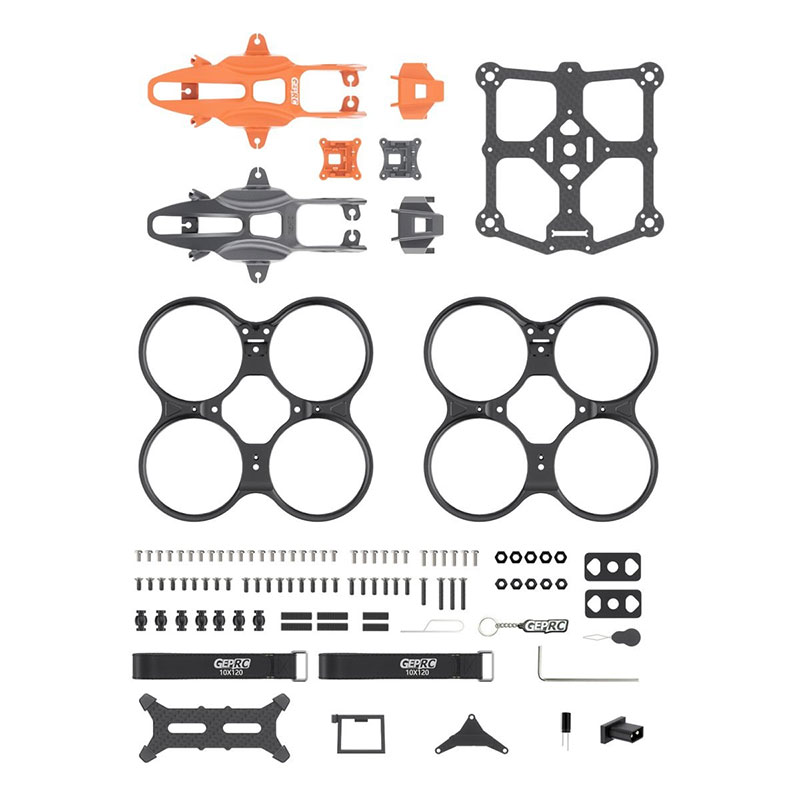

Package Contents

2 × Black Propeller Guards

1 × Carbon Fiber Main Plate

2 × Canopies (Orange and Gray)

2 × Camera Protection Covers (Orange and Gray)

1 × Hardware Screw Set

1 × 1.5 mm Hex Key

2 × Battery Straps

1 × Battery Anti-Slip Pad
