GEPRC SPEEDX2 1002 25000KV Brushless Motor

Overview

The GEPRC SPEEDX2 1002 25000KV is an ultra-lightweight brushless motor developed for high-performance 1S Tiny Whoops and lightweight micro FPV drones. Designed for pilots who demand explosive acceleration and razor-sharp throttle response, this motor delivers exceptional power while maintaining an incredibly low weight of just 2.5g.

Optimised for 1S LiPo batteries, the 25000KV winding provides instant spool-up and aggressive performance, making it ideal for indoor racing, technical freestyle, and fast outdoor micro builds. Its compact 1002 stator offers an excellent balance of efficiency and thrust for 1.6 to 2-inch propellers.

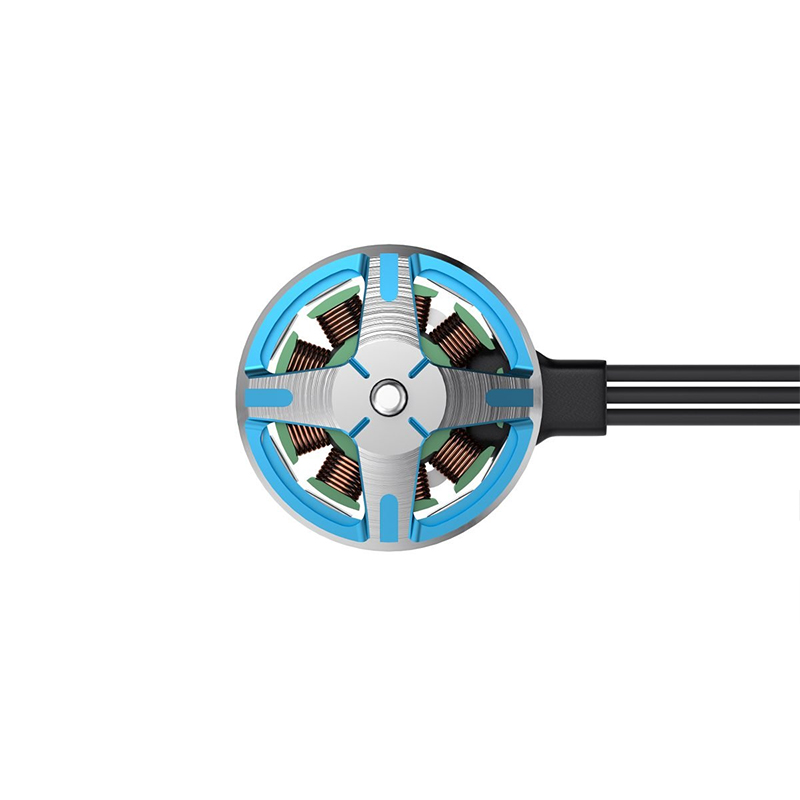

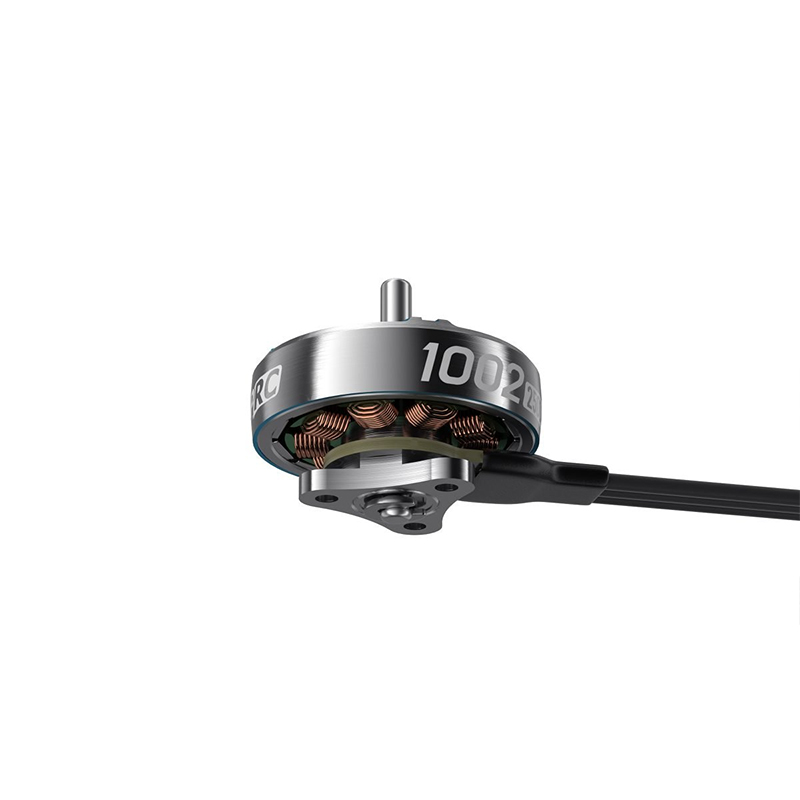

The motor features a precision-machined titanium blue aluminium bell, durable 415ZZ high-speed bearings, and a lightweight design that helps improve agility while keeping vibration to a minimum. Whether you're building a competition Tiny Whoop or a powerful toothpick quad, the SPEEDX2 1002 25000KV is engineered to provide responsive handling and reliable performance.

Features

• High-performance 25000KV brushless motor for 1S LiPo FPV drones.

• Designed for 1.6-inch to 2-inch lightweight quadcopters.

• Delivers rapid throttle response and powerful acceleration.

• Precision CNC-machined aluminium bell with titanium blue finish.

• High-quality 415ZZ bearings for smooth, reliable operation.

• Lightweight construction improves agility and flight performance.

• Optimised for Tiny Whoops, toothpick builds, freestyle, and racing.

Specifications

• Model: GEPRC SPEEDX2 1002 25000KV

• KV Rating: 25000KV

• Configuration: 9N12P

• Stator Diameter: 10mm

• Stator Height: 2mm

• Shaft Diameter: 1.5mm

• Motor Dimensions: Ø13.69 × 7.75mm

• Lead Wires: 28AWG, 36mm

• Recommended Battery: 1S LiPo

• Maximum Power: 58.8W

• Maximum Current: 15.9A

• Recommended ESC: 12A

• Mounting Pattern: 6.6 × 6.6mm (M1.4)

• Weight: 2.5g (including 50mm wire)

• Colour: Titanium Blue

Recommended Applications

Suitable for:

• Tiny Whoop FPV drones

• 1.6-inch micro FPV drones

• 2-inch lightweight freestyle drones

• Toothpick FPV builds

• Indoor and outdoor racing drones

Package Includes

• 1 × GEPRC SPEEDX2 1002 25000KV Brushless Motor

• 6 × M1.4 × 3mm Mounting Screws
