Summary

The SPEEDX2 2207E series features a sleek, all-black glossy design with extensive cutouts for optimal heat dissipation, ensuring durability and impact resistance. Its high responsiveness provides effortless control in every maneuver.

Feature

1. Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
   The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
   Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

Specifications

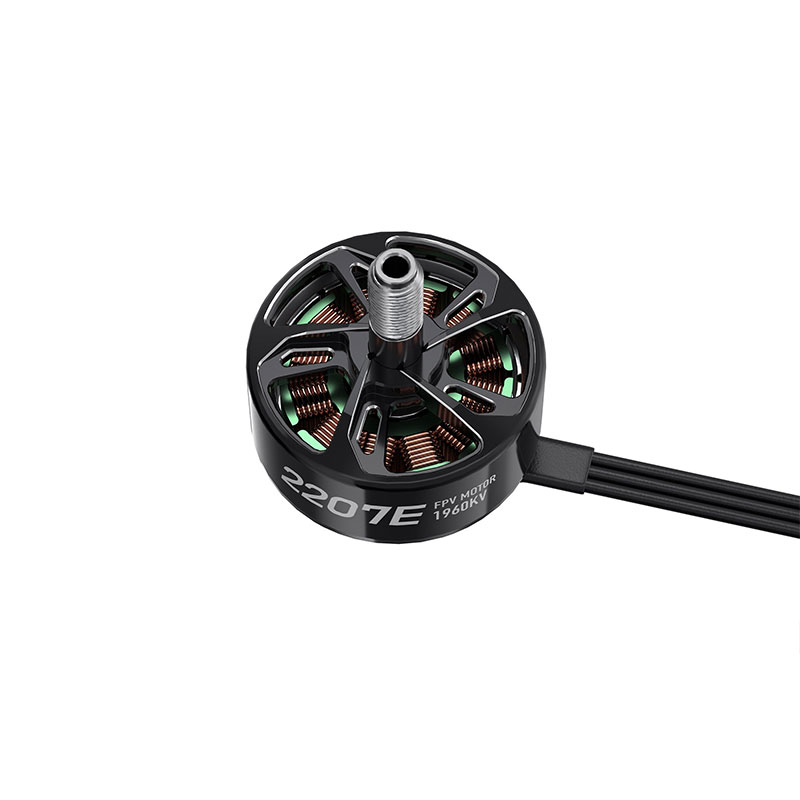

• Model: SPEEDX2 2207E Motor
  KV: 1960
  Max Watt: 1104.7W
  Peak Current: 44.57A
  Interphase Resistance: 69.85mΩ
  Propeller: 4-5inch-3blade
  Magnet: N52H
  Bearing: NMB/NSK
  Stator Configuration: 12N14P
  Dimension: 28*19.6mm
  Shaft Diameter: 5mm
  Shaft Length: 13.5mm
  Mounting Hole Size: 16*16mm
  Wire Specification: 20AWG/150mm
  Compatible ESC: 50A/6S
  Input Voltage: 6S
  Winding: Single-strand copper winding
  Color: Black
  Weight: 34.5g (including wire)
  Compatible Models: Suitable for 4inch-5inch racing FPV quads
