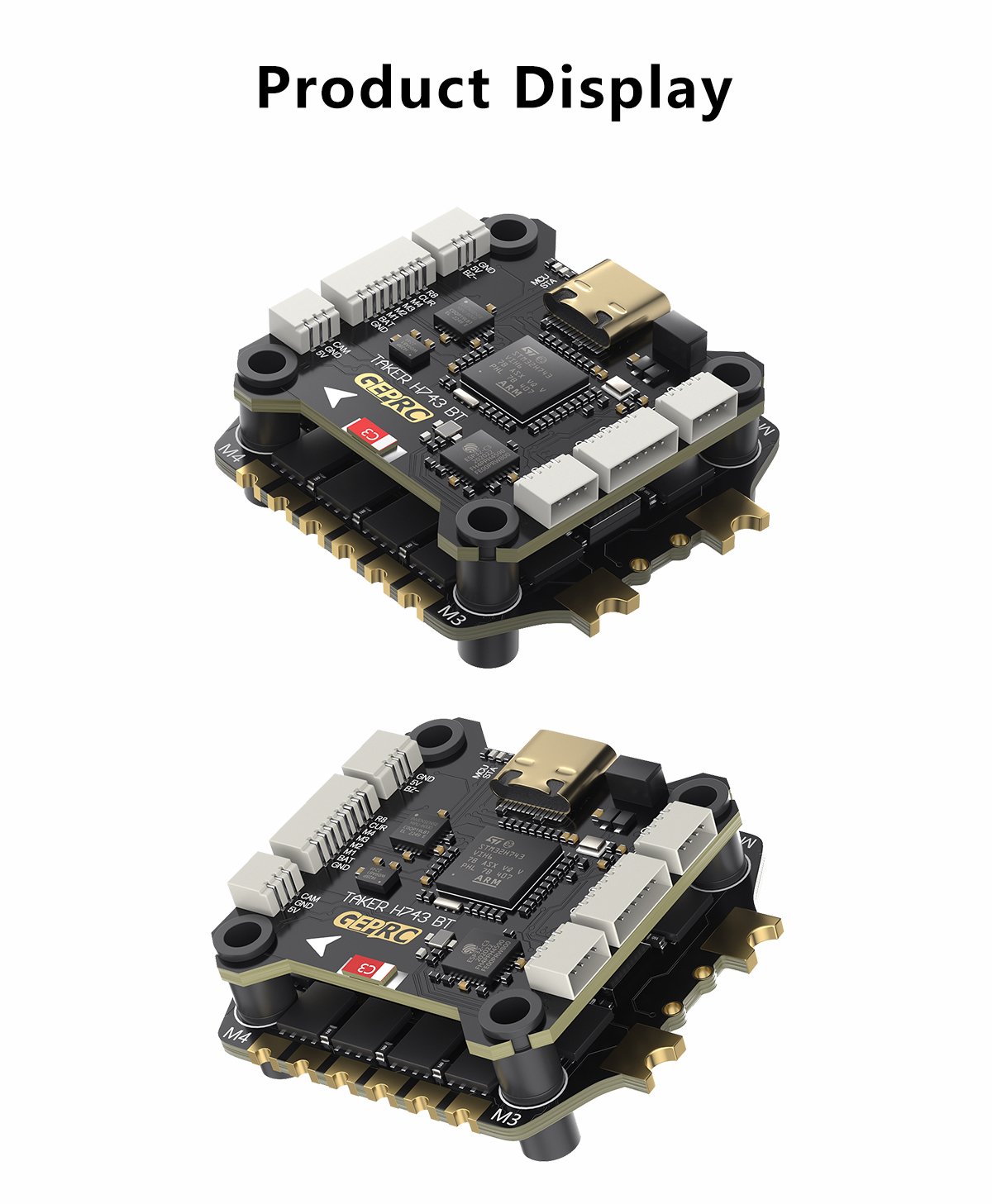

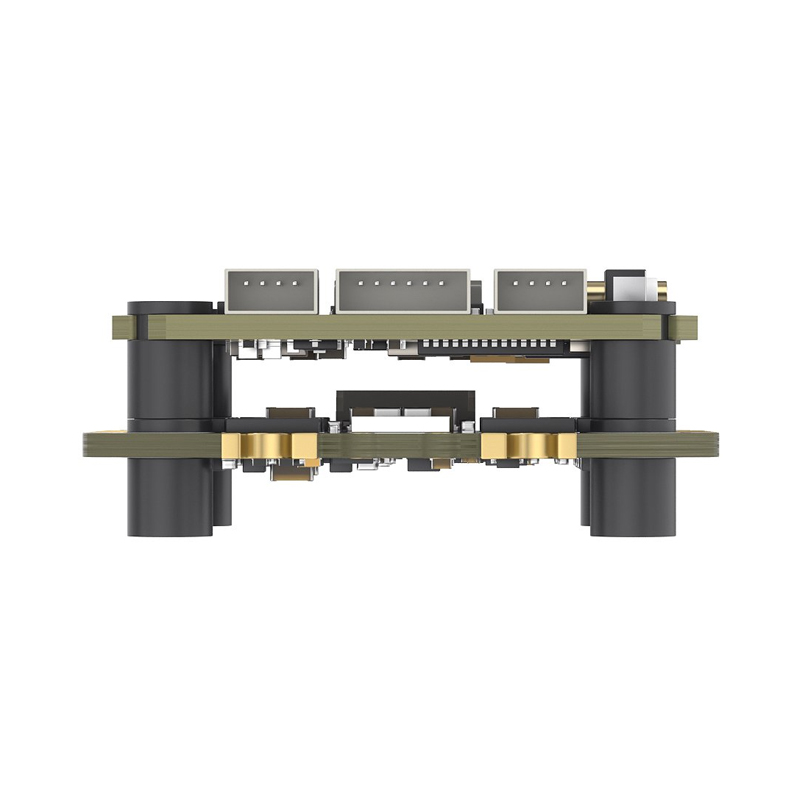

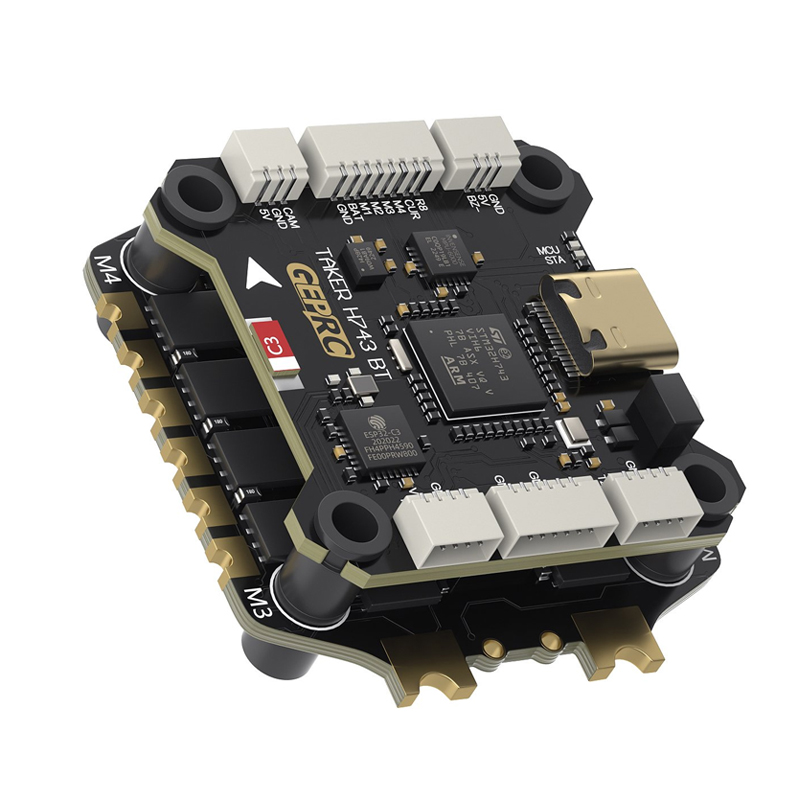

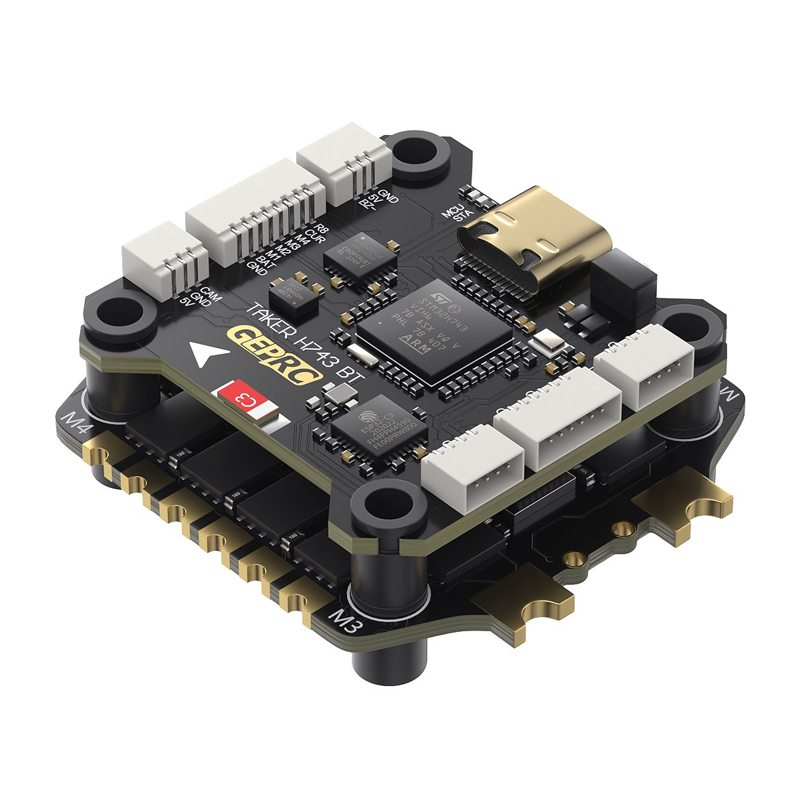

The TAKER H743 BT 32Bit 65A STACK is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H65_8S_32Bit 65A 4IN1 ESC, it delivers an exceptionally smooth flight experience.

Feature

1. Adopts the high-performance STM32H743 as the main controller

2. Equipped with MPU6000 and 42688-P dual gyroscopes

3. 512MB high-capacity black box storage

4. Bluetooth parameter tuning

5. Plug-and-play, no soldering required

6. Integrated barometer

7. Features 7 UART ports

8. Independent BEC with 12V@2.5A and 5V@3A outputs

9. Supports multiple firmware options

10. Equipped with the TAKER H65_8S_32Bit 65A 4IN1 ESC for a smooth flight experience

Specifications

TAKER H743 BT 32Bit 65A STACK

FC model: TAKER H743 BT Flight Controller

MCU: STM32H743
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRC_TAKER_H743
Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

ESC Model: TAKER H65_8S_32Bit 65A 4IN1 ESC

Input Voltage: 3-8S Lipo(STACK only supports 3-6S)
Ammeter: Support
Continue Current：65A
Burst Current：70A（5 seconds）
Support Protocol: Dshot 150/300/600
Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 15.8g
Target: GEPRC_F4_4in1

Note: pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 is also supported, customer flashing is required.target:AM32_AT32DEV_F421)
