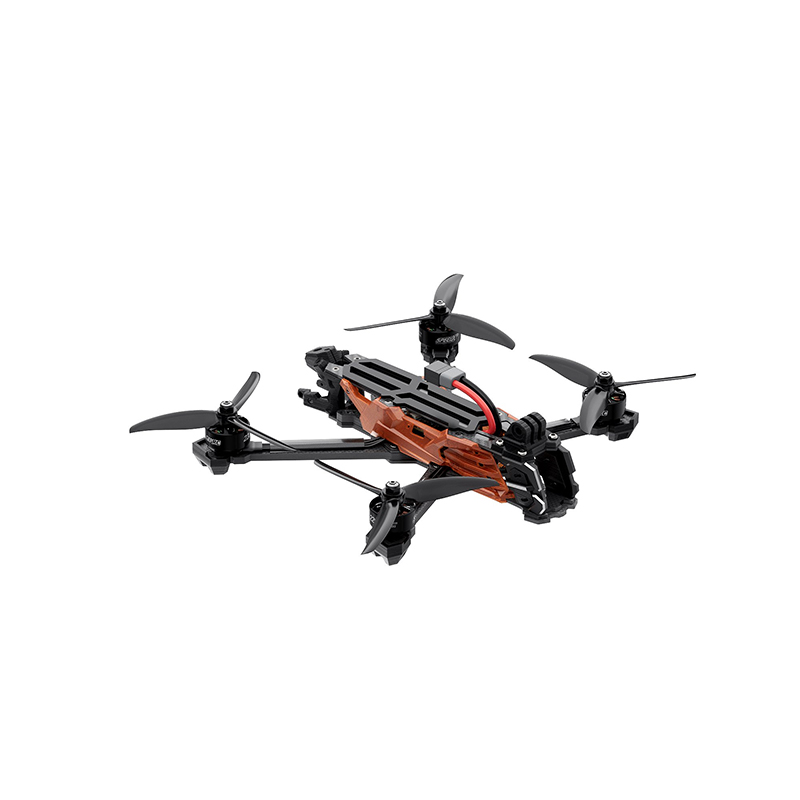

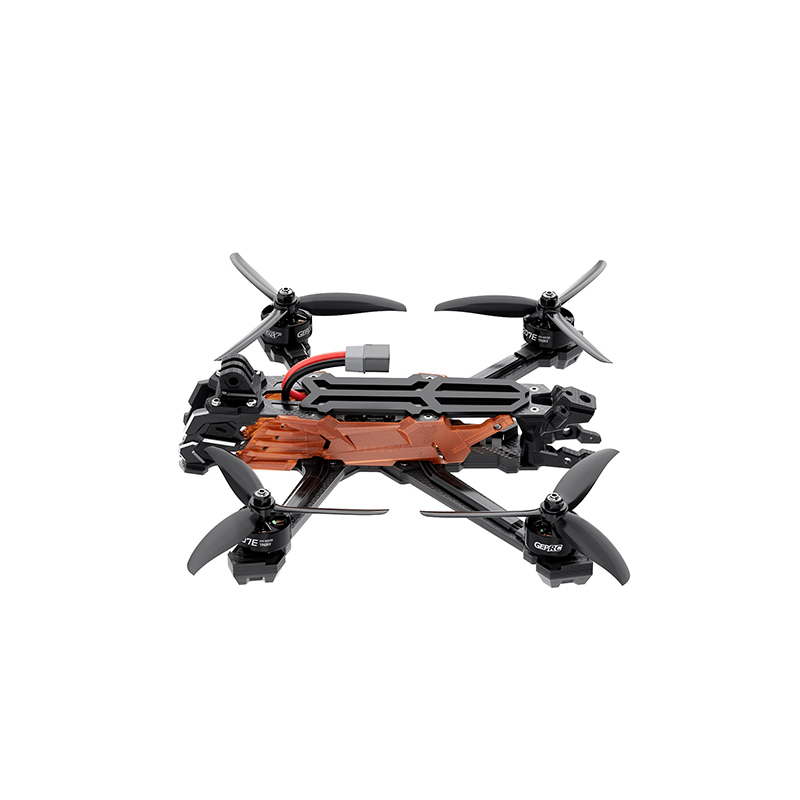

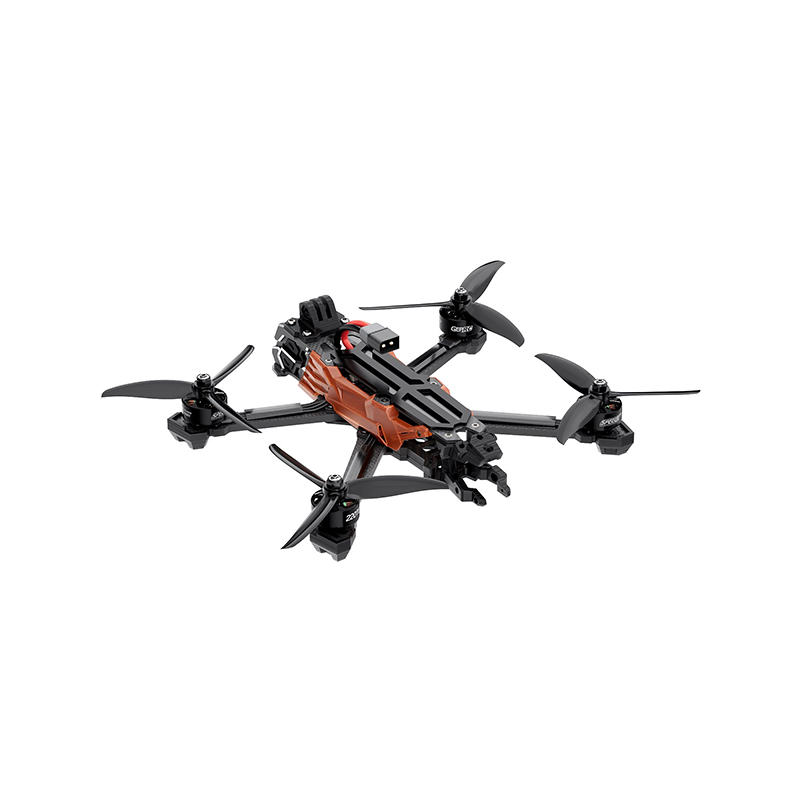

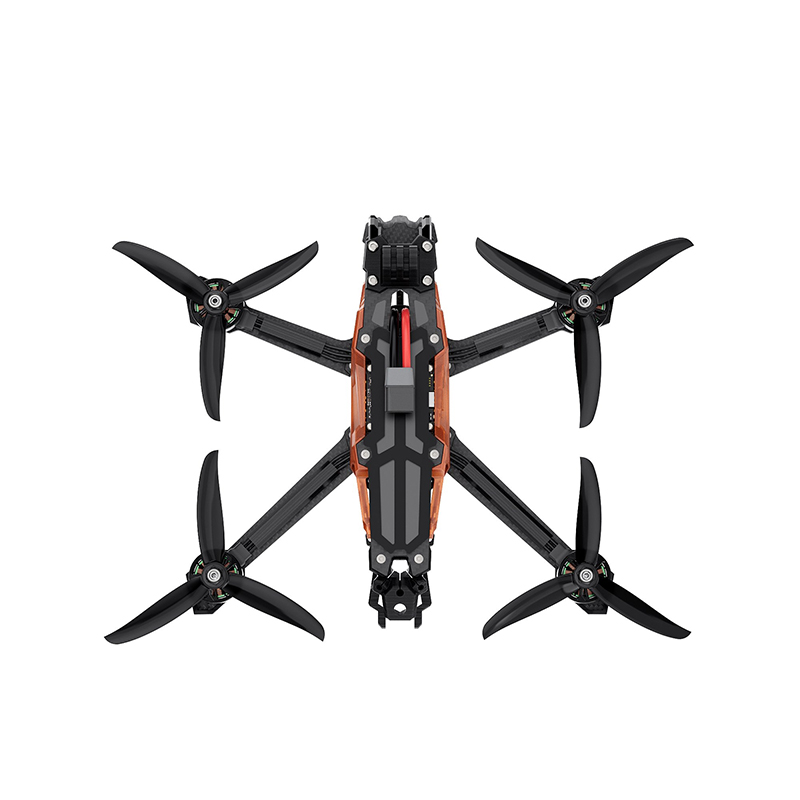

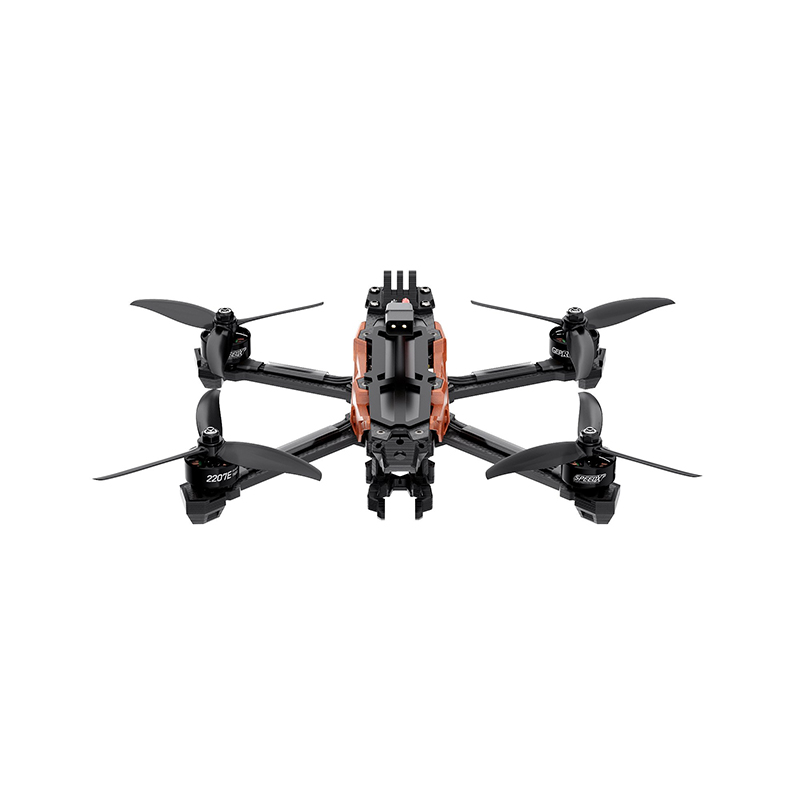

GEPRC Vapor-D5 O4 Pro WTFPV Drone

Overview

The Vapor Series continues to push FPV design forward with full support for the DJI O4 Air Unit Pro system.

GEPRC has updated the frame with a redesigned camera mount and integrated silicone vibration isolation to help reduce resonance and improve footage stability. The newly styled side panels give the quad a more aggressive appearance while blending perfectly with the DJI O4 Air Unit Pro design.

At its core, the drone is powered by the STM32F722 flight controller combined with the TAKER H60_BLS 60A 4-in-1 ESC, delivering fast response, reliable control, and strong performance. Matched with the SPEEDX2 E-series motors, the setup provides smooth throttle feel, precise handling, and plenty of power for freestyle and cinematic flying alike.

The Vapor O4 lineup is offered in both Wide X and Deadcat configurations, available in 5-inch and 6-inch variants to suit different flying styles and shooting needs.

Features

• Fully compatible with the DJI O4 Air Unit Pro for improved image quality and enhanced low-light performance.

• CNC-machined aluminum camera mount adds durability and gives the frame a modern mechanical look.

• Equipped with GEPRC SPEEDX2 E-series motors for responsive power delivery and efficient performance.

• Reinforced front lip design helps protect the camera lens during crashes and rough landings.

• Durable 5mm carbon fiber arms combined with newly designed side plates provide a strong and balanced structure.

Specifications

• Model: Vapor-D5 O4 Pro WTFPV

• Frame: GEP-Vapor-D5 O4 Pro

• Wheelbase: 238.43mm

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Bottom Plate Thickness: 2.5mm

• Arm Thickness: 5.0mm

Flight Controller

• FC: GEP-F722-HD V2

• MCU: STM32F722

• Gyro: ICM42688-P (SPI)

• Barometer: BMP280

• OSD: Betaflight OSD with AT7456E

ESC

• TAKER H60_BLS 60A 4-in-1 ESC

Electronics

• VTX: Not Included

• Camera: Not Included

• Antenna: Not Included

• GPS: Not Included

• Connector: XT60

Motor & Prop Setup

• Motor: GEPRC SPEEDX2 2207E 1960KV

• Propeller: GEMFAN 5136

Weight & Battery

• Weight: 405g ±5g

• Receiver: PNP

• Recommended Battery: 6S LiPo 1550mAh – 2200mAh

• Estimated Flight Time: 13–17 minutes

Package Includes

• 1 × Vapor-D5 WTFPV

• 2 × GEMFAN 5136 propeller sets

• 2 × Battery anti-slip pads

• 1 × Spare screw kit

• 2 × M20 × 250mm battery straps

• 1 × 1.5mm L-shaped screwdriver

• 1 × 2.0mm L-shaped screwdriver

• 1 × 3.0mm L-shaped screwdriver

• 1 × GoPro mount

• 1 × GPS mount

• 1 × Vapor side panel set
